AUDIOCENTER SA3-15

Type

Active DSP-controlled full range loudspeaker

Frequency Response

(-6dB anechoic chamber)

44Hz-20KHz

Maximum Calculated

SPL/1M

134dB

LF Driver

Customized AUDIOCENTER ferrite driver, 3” voice coil

HF Driver

Customized AUDIOCENTER ferrite driver, 1” exit, 1.75” voice coil

Horizontal Coverage Angle(Symmetrical)

60°

Vertical Coverage Angle(Symmetrical)

40°

AMPLIFIER

Amplifier Circuitry

Class D

Power(Peak)

2000W

Frequency Response(1W 8Ω 2ch)

20Hz-20KHz(±0.5dB)

Intermodulation Distortion

＜0.05%

Total Harmonic Distortion

＜0.05%

Protection

DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection

Cooling System

Cooling with fans, air convection

DSP

Processor

96KHz signal sampling frequency,24bit precision

Presets

Adjustable via the knobs on the back panel

Crossover

Controlled by DSP

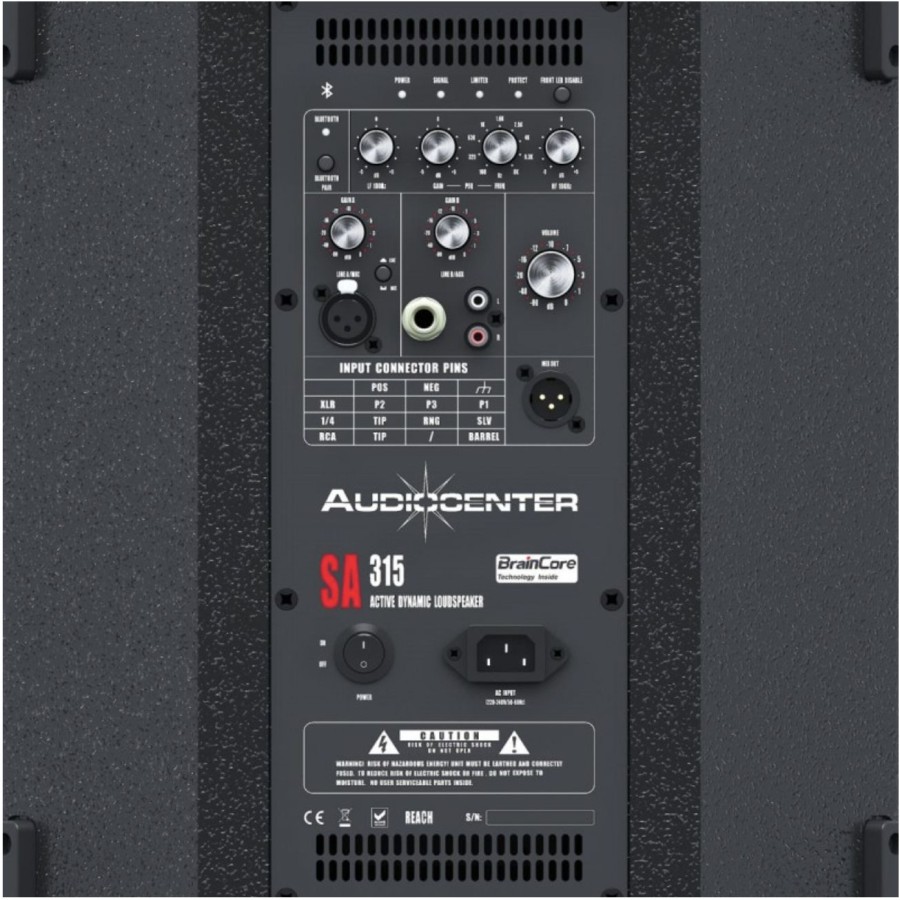

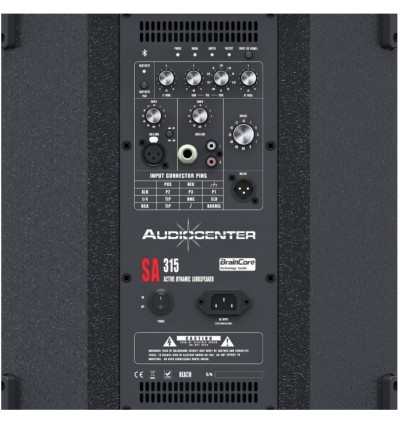

Output/Input

Signal Input

1×NEUTRIK® female XLR(Mono jack 6.35), 1×Mono jack 6.35,1×RCA,1×wireless Bluetooth

Signal Output

1×NEUTRIK® male XLR

Power Input

3 pin plug

Working Voltage

100V-130V/60Hz or 220V-240V/50Hz

Cabinet

Cabinet Material

CNC made of excellent wood

Cabinet Color

Black and white available, can be customized according to the RAL code

Dimension(W×H×D)

439×760×454mm

Net Weight

27.0Kg
