AGUJA ORTOFON CONCORDE Q.BERT

AGUJA ORTOFON CONCORDE Q.BERT

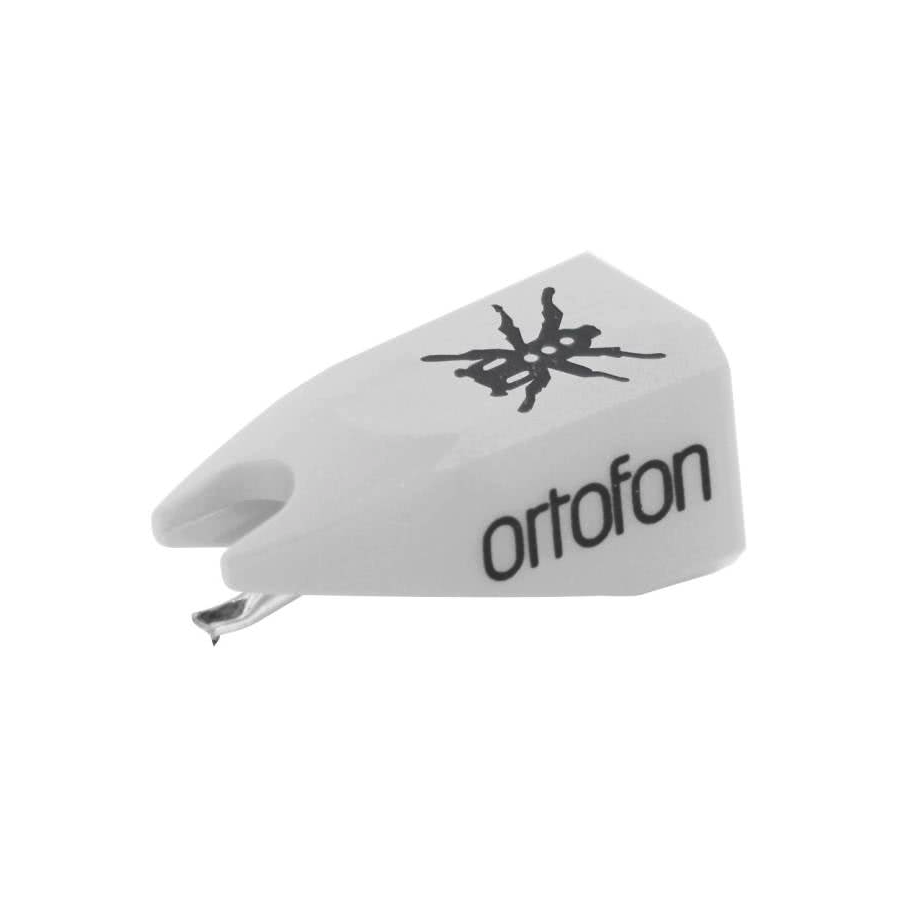

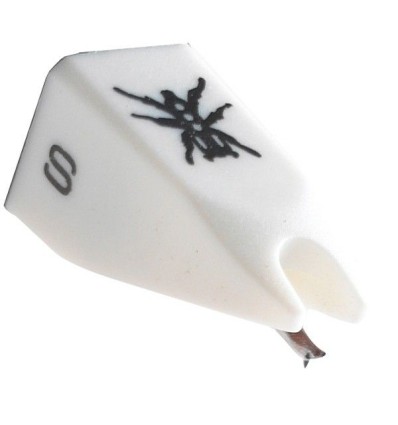

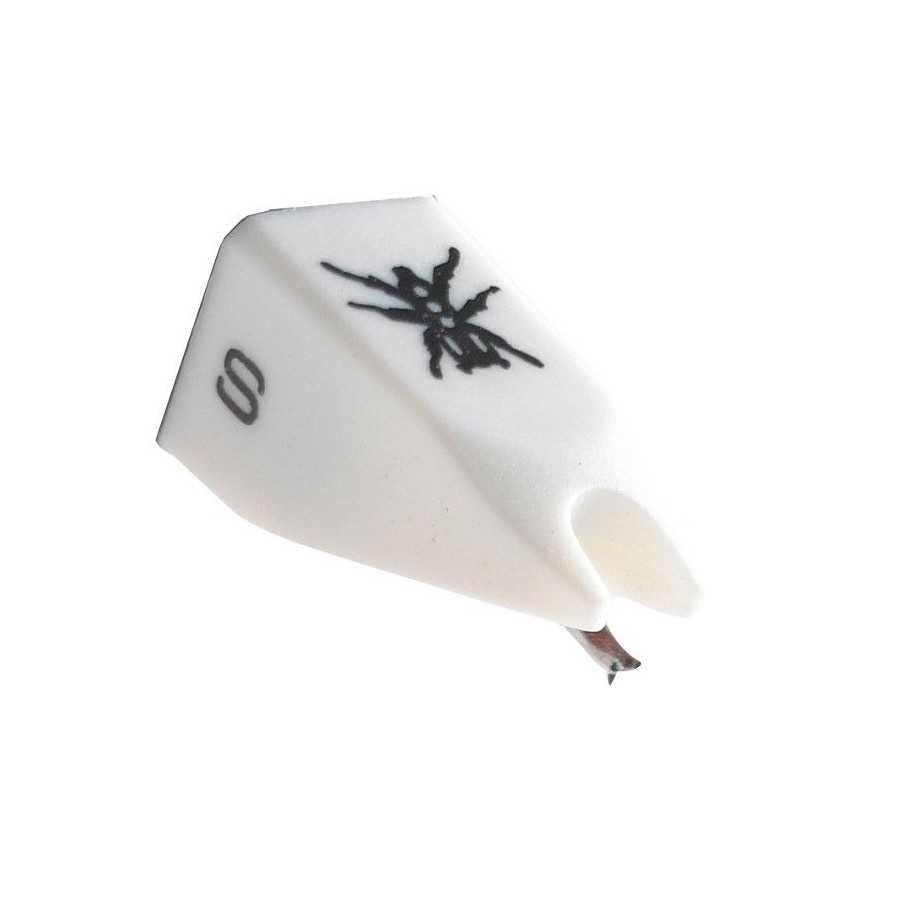

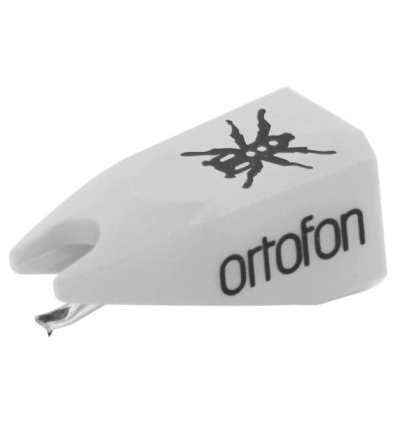

Aguja de recambio para ORTOFON CONCORDE Q.BERT. Aguja esférica, ideal para Scratch. Fuerza de tracción recomendada: 3,0 g

Especificaciones:

• Aguja esférica, ideal para Scratch
• Fuerza de tracción recomendada: 3,0 g
• Potencia de salida: 11 mV
• Respuesta en frecuencia: 20-18.000 Hz - 2 dB
• Output voltage at 1000 Hz, 5cm/sec. 11 mV
• Channel balance at 1 kHz 1,5 dB
• Channel separation at 1 kHz 22 dB
• Frequency range 20-20.000 Hz
• Frequency response 20-18.000 Hz -3 dB
• FIM distortion at recommended tracking force, DIN 45.542 < 1%
• Tracking ability at 315Hz at recommended tracking force 90 µm
• Compliance, dynamic, lateral 12 µm/mN
• Stylus type Spherical
• Stylus tip radius R 18 µm
• Equivalent stylus tip mass 0,6 mg
• Tracking force range 2,0-4,0 g (20-40 mN)
• Tracking force, recommended 3,0 g (30 mN)
• Tracking angle 20°
• Internal impedance, DC resistance 1680 Ohm
• Internal inductance 920 mH
• Recommended load resistance 47 kOhm
• Recommended load capacitance 200-400 pF
• Cartridge colour, body/stylus Black/White
• Cartridge weight 18,5 g
• Replacement stylus unit Q.Bert
