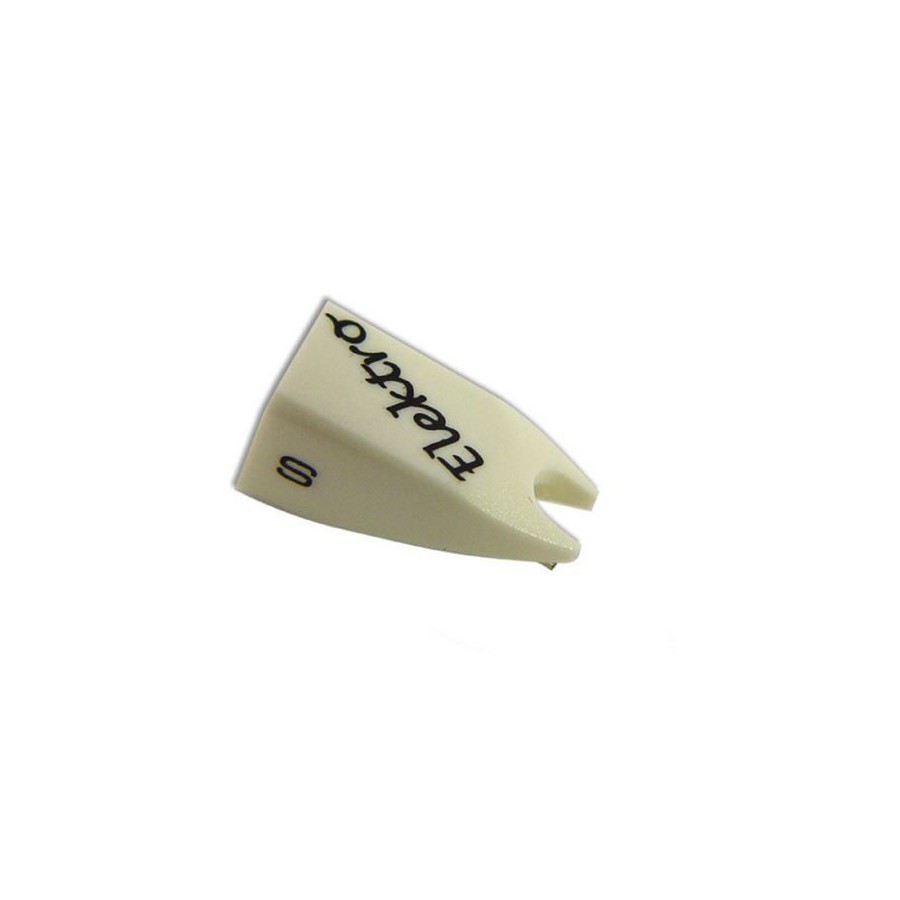

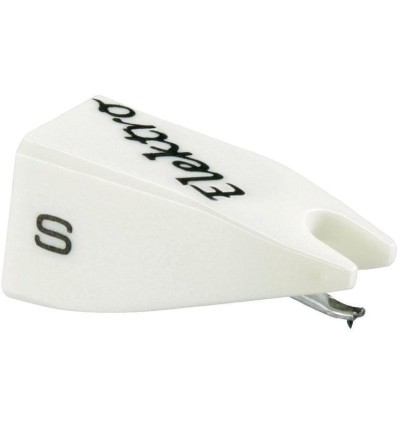

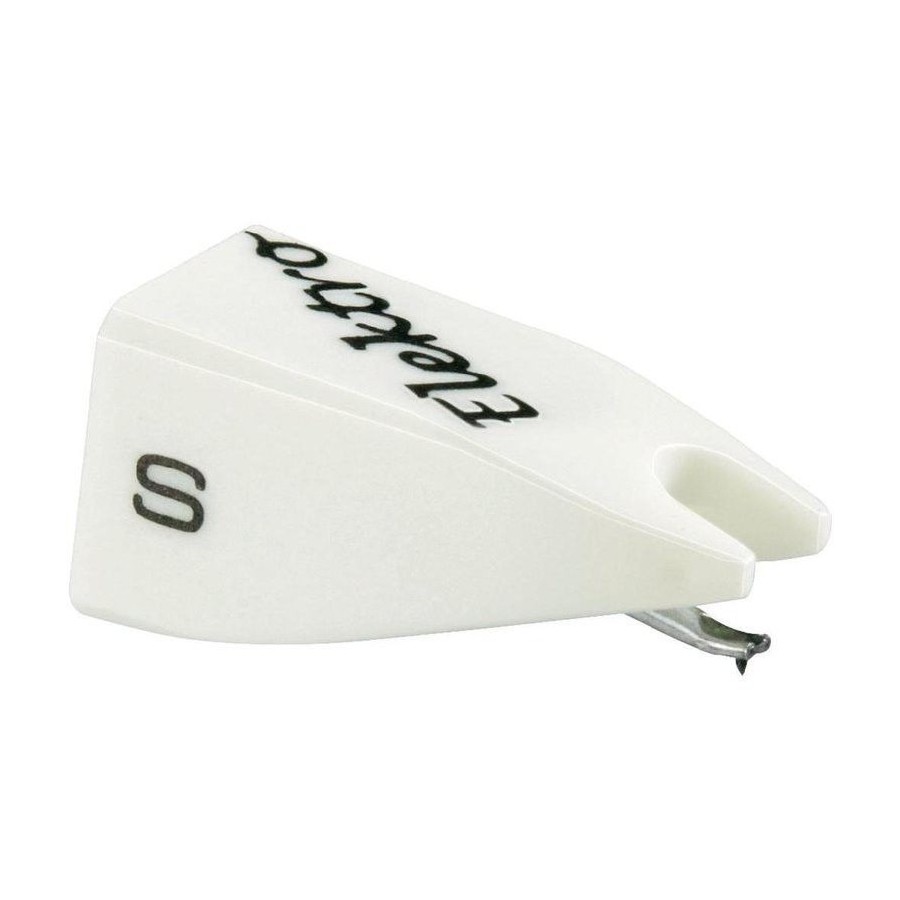

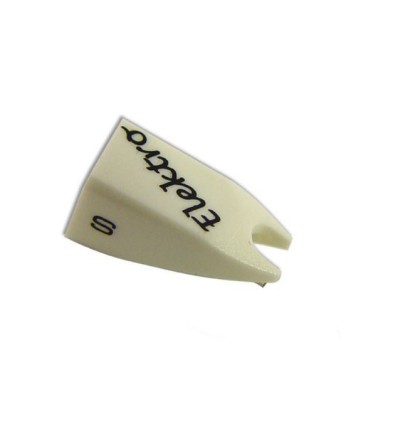

AGUJA ORTOFON CONCORDE ELEKTRO

AGUJA ORTOFON CONCORDE ELEKTRO

Aguja giradiscos de recambio para ORTOFON CONCORDE ELEKTRO. Aguja esférica, ideal para Scratch. Fuerza de tracción recomendada: 4,0 g.

Especificaciones:

• Aguja esférica, ideal para Scratch
• Fuerza de tracción recomendada: 4,0 g
• Potencia de salida: 7,5 mV
• Respuesta en frecuencia: 20-15.000 Hz +3 /-2dB
• Output voltage at 1000 Hz, 5cm/sec. 7,5 mV
• Channel balance at 1 kHz 1,5 dB
• Channel separation at 1 kHz 25 dB
• Channel separation at 15 kHz 15 dB
• Frequency range 20-22.000 Hz
• Frequency response 20-15.000 Hz +3 / -2 dB
• FIM distortion at recommended tracking force, DIN 45.542 <1%
• Tracking ability at 315Hz at recommended tracking force 80 µm
• Compliance, dynamic, lateral 6 µm/mN
• Stylus type Spherical
• Stylus tip radius R 18 µm
• Equivalent stylus tip mass 0,6 mg
• Tracking force range 3,0-5,0 g (30-50 mN)
• Tracking force, recommended 4,0 g (40 mN)
• Tracking angle 20°
• Internal impedance, DC resistance 750 Ohm
• Internal inductance 450 mH
• Recommended load resistance 47 kOhm
• Recommended load capacitance 200-600 pF
• Cartridge colour, body/stylus White/White
• Cartridge weight 18,5 g
